Wi-Fi routers transmit radio frequencies that your phones, tablets, and laptops pick up and use to connect to the internet. As the unseen frequencies move, they bounce off or pass through everything in their path, including the walls, furniture, and you. Your actions, including breathing, modify the course of the signal from the router to your device. You’re having trouble breathing.
These conversations do not disrupt your internet connection, but they may indicate when someone is in distress. BreatheSmart, a deep learning system created by NIST, can evaluate such minute changes to assist detect whether someone in the room is struggling to breathe. And it can do it using existing Wi-Fi routers and devices. This paper was just published in IEEE Access.
NIST scientists hoped to assist physicians in combating the COVID-19 epidemic in 2020. Patients were segregated, and ventilators were in short supply. The previous study has looked at exploiting Wi-Fi signals to detect individuals or movement, but these setups often needed bespoke sensing equipment, and the data from these experiments was quite restricted.
“As everyone’s world was flipped upside down, some of us at NIST were thinking about what we might do to assist,” says Jason Coder, NIST’s shared spectrum metrology research leader. “Because we didn’t have time to design a new gadget, how can we make do with what we currently have?”
Working with colleagues at the FDA’s Center for Devices and Radiological Health’s Office of Science and Engineering Labs (OSEL), Coder and research associate Susanna Mosleh developed a novel method for measuring a person’s breathing rate using current Wi-Fi routers. The “channel state information,” or CSI, in Wi-Fi is a collection of signals delivered from the client (such as a smartphone or laptop) to the access point (such as the router).
The client device always sends the same CSI signal, and the access point receiving the CSI signals knows what it should look like. The CSI signals, however, get distorted when they bounce off objects or lose intensity as they move across the environment. To modify and improve the connection, the access point assesses the level of distortion.
Because these CSI streams are short, less than a kilobyte in size, they do not interfere with the data flow across the channel. The researchers updated the router’s software to request these CSI streams more often, up to 10 times per second, in order to acquire a more thorough picture of how the signal was changing.

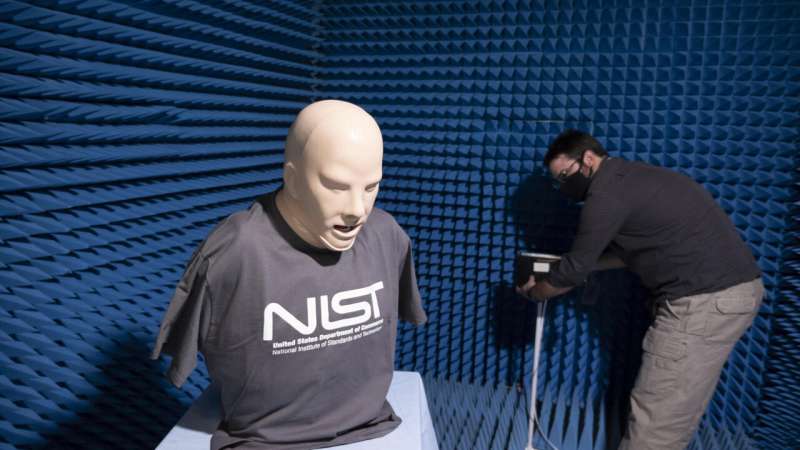

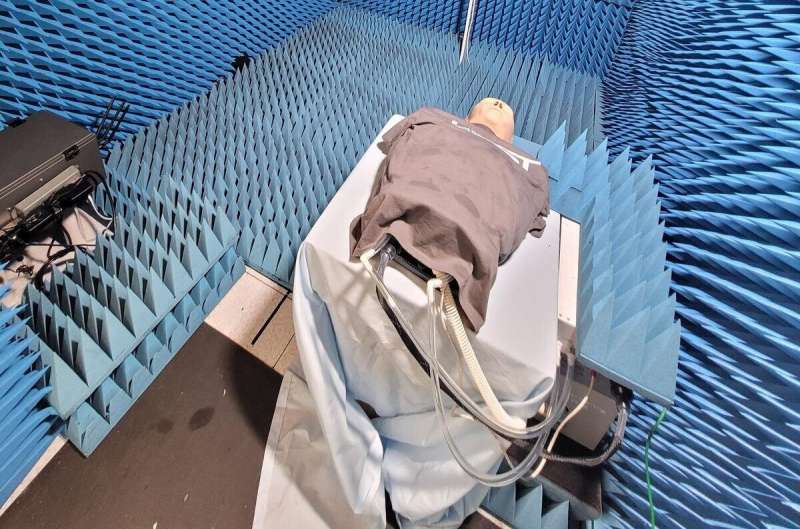

In an anechoic environment, they fitted up a manikin used to teach medical personnel with a commercial off-the-shelf Wi-Fi router and receiver. This manikin is intended to simulate a variety of respiratory problems, including normal respiration, abnormally slow breathing (called bradypnea), unusually fast breathing (called tachypnea), asthma, pneumonia, and chronic obstructive pulmonary disease, or COPD.
The way our bodies move while we breathe affects the Wi-Fi signal. Consider how your chest moves differently when you are wheezing or coughing vs when you are breathing regularly. When the manikin “breathed,” the movement of its chest changed the course of the Wi-Fi signal. The data produced by the CSI streams was recorded by the team members. Despite collecting a plethora of data, they still need assistance in making sense of what they had obtained.
“This is where we can use deep learning,” Coder said.
Deep learning is a subset of artificial intelligence, which is a sort of machine learning that replicates humans’ capacity to learn from their previous actions and enhances the machine’s ability to spot patterns and analyse new data. Mosleh worked on a deep learning system to sift through the CSI data, comprehend it, and identify patterns that indicated various respiratory difficulties. The BreatheSmart algorithm accurately categorised a range of breathing patterns simulated using the manikin 99.54% of the time.
“Most of the previous work was done with extremely minimal data,” Mosleh explains. “We were able to gather data from a large number of simulated respiratory settings, which adds to the variety of the training set accessible to the algorithm.”
According to Coder, there has been a lot of interest in exploiting Wi-Fi signals for sensing applications. He and Mosleh anticipate that app and software developers would be able to utilise the work’s approach as a foundation to construct applications to remotely monitor respiration.
“All of the data collection is done on software on the access point (in this example, the router), which could be done by a phone app,” Coder explains. “This paper attempts to outline how someone may create and test their own algorithm. This is a framework to assist them in obtaining important information.”
