Silicon carbide (SiC) is a man-made material that is extremely hard and can be used to make things like bulletproof vests and ceramic plates. But it’s not just tough – SiC is also a type of material called a semiconductor. Semiconductors have properties that make them useful for things like electronic devices, because they can conduct electricity, but only in certain circumstances. This makes them very important in modern technology.
SiC, a semiconductor that can exist in different forms or allotropes, has been the subject of study for physicists and material scientists for decades. However, its 2D allotrope has remained primarily hypothetical and elusive. Theoretical predictions suggest that the 2D allotrope of SiC would have a large direct band gap of 2.5 eV and high chemical versatility, making it stable in ambient conditions. Despite this, existing studies only reported disordered nanoflakes of 2D SiC, and the elusive allotrope remained unverified.
Recently, a team of researchers from Lund University, Chalmers University of Technology, and Linköping University has synthesized monocrystalline epitaxial monolayer honeycomb SiC on top of ultrathin transition metal carbide films placed on SiC substrates. Their study, published in Physical Review Letters, introduces a promising technique for the large-area and bottom-up synthesis of SiC’s elusive allotrope.
According to Craig Polley, one of the researchers involved in the study, their collaborators were interested in studying thin transition metal carbide films on SiC substrates. They hoped to create a graphene encapsulation layer over the metal carbide films, which can be grown ‘through’ overlayers on SiC. Therefore, the researchers aimed to investigate the properties of this grown graphene layer.

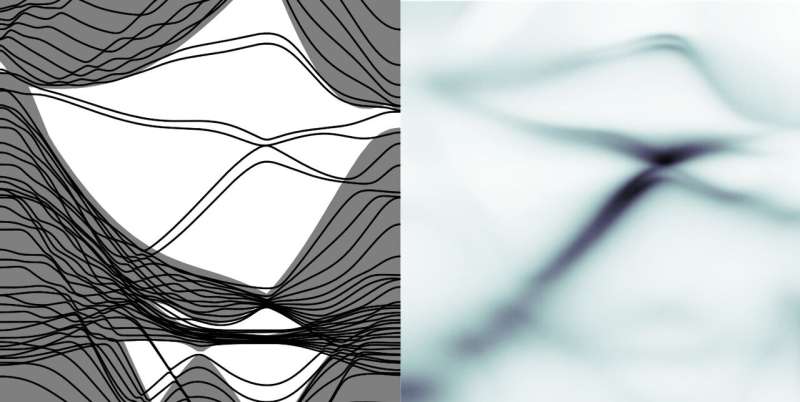

Initially, Polley and his colleagues tried to investigate the properties of a graphene encapsulation layer formed over metal carbide films. However, while characterizing this layer using ARPES, they observed striking and fascinating spectra that did not resemble those observed in graphene. As they continued their analysis, they discovered that there was no graphene on the samples, leading them to make a significant discovery about SiC’s elusive allotrope.
A team of researchers from Lund University, Chalmers University of Technology, and Linköping University has made a groundbreaking discovery in the field of materials science. The team has managed to synthesize the elusive two-dimensional (2D) allotrope of silicon carbide (SiC), a semiconductor that has been of great interest to physicists and material scientists for decades. SiC exists in different physical forms, or allotropes, and while its 2D form has been hypothesized for a while, it had not been empirically verified until now.
According to theoretical predictions, the 2D allotrope of SiC would have a large direct band gap of 2.5 eV and a high chemical versatility. However, existing studies had only reported disordered nanoflakes of 2D SiC, and the properties of the material were not yet fully understood. That is, until the recent breakthrough by the Swedish team.
The researchers were able to synthesize monocrystalline epitaxial monolayer honeycomb SiC on top of ultrathin transition metal carbide films placed on SiC substrates. This is a promising technique for the large-area and bottom-up synthesis of SiC’s elusive allotrope. Initially, the researchers were trying to investigate the properties of a graphene encapsulation layer formed over metal carbide films. However, while trying to characterize the properties of this layer using a technique known as ARPES, they observed spectra that did not resemble those observed in graphene.
After conducting numerous measurements and calculations, the team discovered that the surface they had grown was honeycomb SiC, even though this was not their original intention. This was a significant discovery, as until now, there was no known method to create large area, single crystal honeycomb SiC. The researchers found that the synthesis technique entails placing a thin film of transition metal carbide on top of a SiC substrate, which is then annealed to high enough temperatures. The SiC decomposes while the metal carbide remains intact, and the Si and C atoms migrate to the surface and recrystallize into honeycomb SiC.
The researchers also conducted further analyses to verify that the unique surface they observed was, in fact, the 2D phase of SiC. Once they confirmed this, they studied its characteristics and found that the SiC was almost planar and stable at high temperatures. The synthesis technique is a notable milestone that paves the way for further experimental investigation of SiC’s 2D allotrope, although additional work will be required to effectively isolate the layer they observed from its underlying substrate.
Craig Polley, one of the researchers who carried out the study, highlighted the main contributions of the study as the discovery of a new synthesis technique and the in-depth detective work that went into conclusively identifying the mystery surface as honeycomb SiC. Going forward, the researchers hope to learn more about how to decouple the material from its substrate and explore this uncharted territory.
