The widespread adoption of electric vehicles (EVs) has brought attention to the various types of batteries that power these environmentally friendly vehicles. EV batteries are at the heart of the electric revolution in transportation, providing the energy needed to propel vehicles while reducing greenhouse gas emissions. In this comprehensive guide, we will delve deep into the world of electric vehicle batteries, exploring the different types, technologies, and recent advancements that are driving the future of EVs.
Lithium-Ion Batteries

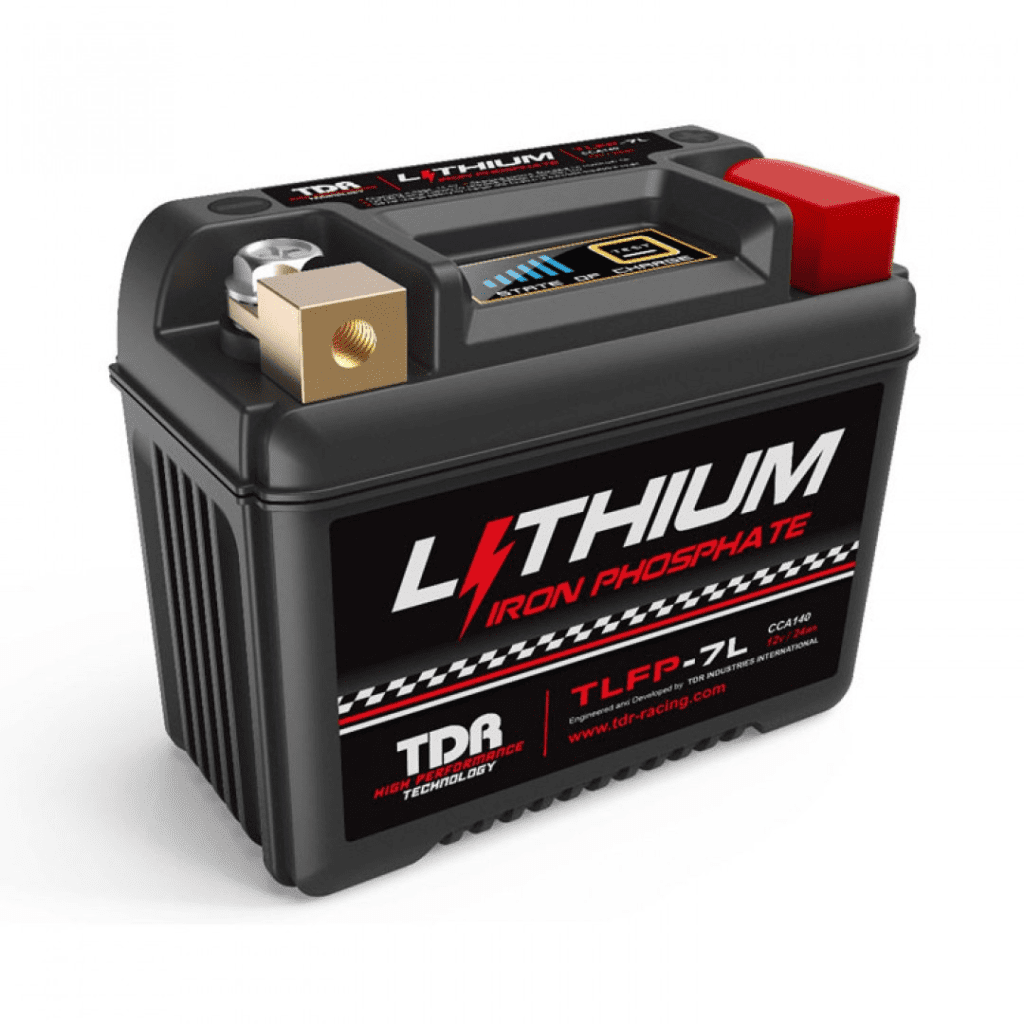

1.1 Lithium Iron Phosphate (LiFePO4)
Lithium iron phosphate batteries, often abbreviated as LiFePO4, are a type of lithium-ion battery known for their safety and long cycle life. They are widely used in electric vehicles due to their stability, high-temperature tolerance, and resistance to thermal runaway. LiFePO4 batteries use a cathode made of lithium iron phosphate material, which provides a stable voltage and is less prone to overheating or combustion compared to other lithium-ion chemistries. While LiFePO4 batteries have a lower energy density than some other lithium-ion types, they are preferred for applications where safety is paramount.
1.2 Lithium Cobalt Oxide (LiCoO2)
Lithium cobalt oxide batteries, or LiCoO2 batteries, are one of the earliest and most common lithium-ion battery types. They are known for their high energy density, making them suitable for portable electronics and some electric vehicles. However, LiCoO2 batteries have limitations in terms of cycle life and thermal stability, which can pose safety concerns, especially at high temperatures. Researchers are working on improving the safety of LiCoO2 batteries while maintaining their high energy density.
1.3 Lithium Manganese Oxide (LiMn2O4)
Lithium manganese oxide batteries, often referred to as LiMn2O4 batteries, strike a balance between energy density and safety. They are less prone to thermal runaway compared to LiCoO2 batteries and offer better cycle life. LiMn2O4 batteries are commonly used in hybrid electric vehicles (HEVs) and some smaller electric vehicles. They are known for their stability and relatively low cost compared to other lithium-ion chemistries.
1.4 Lithium Nickel Cobalt Manganese Oxide (NCM)
Lithium nickel cobalt manganese oxide batteries, or NCM batteries, are a popular choice for electric vehicle manufacturers due to their high energy density and improved cycle life compared to LiCoO2 batteries. NCM batteries use a combination of nickel, cobalt, and manganese in the cathode material. Variations of NCM batteries, such as NCM 111, NCM 622, and NCM 811, refer to the ratio of nickel, cobalt, and manganese in the cathode material. Higher nickel content typically results in higher energy density but may come with trade-offs in terms of thermal stability.
1.5 Lithium Nickel Cobalt Aluminum Oxide (NCA)
Lithium nickel cobalt aluminum oxide batteries, or NCA batteries, are similar to NCM batteries but use aluminum instead of manganese in the cathode material. NCA batteries are known for their high energy density, which makes them suitable for electric vehicles with long driving ranges. Tesla, for example, uses NCA batteries in its vehicles. However, NCA batteries may have some thermal management challenges, and they can be more expensive to manufacture compared to other lithium-ion types.
Solid-State Batteries
Solid-state batteries are a promising next-generation battery technology that could address some of the limitations of traditional liquid electrolyte lithium-ion batteries. Instead of a liquid electrolyte, solid-state batteries use a solid electrolyte, which offers several potential advantages:
2.1 Safety: Solid-state batteries are less prone to thermal runaway and combustion because they don’t contain flammable liquids.
2.2 Energy Density: Solid-state batteries have the potential for higher energy density, which could lead to longer driving ranges for electric vehicles.
2.3 Cycle Life: Solid-state batteries may have longer cycle life compared to traditional lithium-ion batteries, reducing the need for frequent battery replacements.
2.4 Fast Charging: Solid-state batteries can potentially support faster charging rates, reducing charging times for EVs.
Researchers and manufacturers are actively working on developing practical solid-state battery technology for electric vehicles. Challenges include finding suitable solid electrolyte materials, optimizing manufacturing processes, and addressing cost considerations. Solid-state batteries have the potential to revolutionize the electric vehicle industry in the coming years.
Nickel-Metal Hydride (NiMH) Batteries
Nickel-metal hydride batteries, or NiMH batteries, have been used in hybrid electric vehicles (HEVs) for many years. While they have lower energy density compared to lithium-ion batteries, NiMH batteries are known for their reliability and long cycle life. They are less prone to thermal issues and are considered a safer option for some applications. However, the lower energy density limits their use in all-electric vehicles, where maximizing range is a primary concern.
Sodium-Ion Batteries
Sodium-ion batteries are an emerging battery technology that uses sodium ions instead of lithium ions to store and release energy. Sodium is more abundant and less expensive than lithium, which could potentially lead to more affordable batteries. While sodium-ion batteries are still in the research and development phase, they have the potential to become a viable alternative to lithium-ion batteries, especially for stationary energy storage applications.

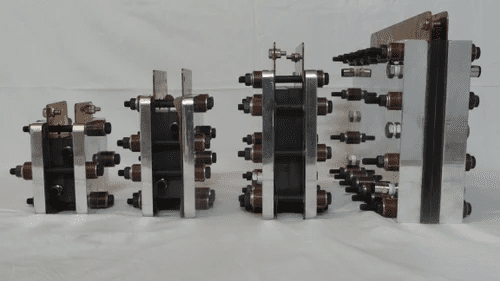

Polymer Electrolyte Membrane (PEM) Fuel Cells
While not technically batteries, polymer electrolyte membrane fuel cells, or PEM fuel cells, are another technology used in electric vehicles, specifically in hydrogen fuel cell vehicles (FCVs). PEM fuel cells use hydrogen gas as a fuel source and oxygen from the air to produce electricity through an electrochemical reaction. This electricity powers the vehicle’s electric motor. FCVs are known for their fast refueling times and long driving ranges, but hydrogen infrastructure remains limited in many regions.
Advancements and Innovations
Electric vehicle battery technology continues to evolve rapidly, driven by ongoing research and development efforts. Some notable advancements and innovations in the field include:
6.1 High-Nickel Cathodes
Battery manufacturers are increasingly focusing on high-nickel cathode materials, such as NCM 811, to achieve higher energy density while maintaining safety and cycle life. These cathodes reduce the cobalt content, which is expensive and has supply chain concerns.
6.2 Silicon Anodes
Silicon is being explored as an anode material because it can store more lithium ions, leading to higher energy density. However, silicon anodes can experience volume expansion during charge and discharge cycles, which poses challenges that researchers are working to overcome.
6.3 Advanced Thermal Management
Improved thermal management systems are being developed to enhance battery safety and performance. These systems regulate the temperature of the battery pack, ensuring it operates within a safe range and optimizing charging and discharging rates.

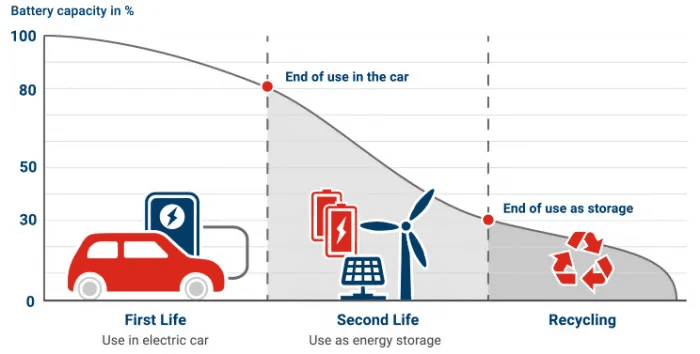

6.4 Recycling and Second-Life Applications
Efforts to recycle lithium-ion batteries are increasing to recover valuable materials and reduce waste. Additionally, retired electric vehicle batteries are being repurposed for stationary energy storage applications, giving them a second life after their automotive use.
One of the primary second-life applications for EV batteries is stationary energy storage. These batteries can store excess electricity generated from renewable sources, such as solar panels or wind turbines, and release it when needed. This helps balance the grid, reduce energy costs, and increase the reliability of renewable energy systems.
6.5 Solid-State Battery Progress
Solid-state battery research continues to make strides, with various companies and institutions working on prototypes and pilot production. Commercialization of solid-state batteries is anticipated to occur in the coming years.
The world of electric vehicle batteries is diverse and ever-evolving. Different battery types offer a range of characteristics, from high energy density to enhanced safety and cost-effectiveness. As electric vehicle adoption grows and technology advances, battery technologies will continue to improve, providing consumers with more choices and driving the transition to a greener, more sustainable transportation future. Whether it’s lithium-ion batteries, solid-state batteries, or emerging technologies like sodium-ion batteries, the future of electric vehicles is bright, promising greater efficiency, longer ranges, and reduced environmental impact.
