Electric vehicles (EVs) have gained significant popularity in recent years as a cleaner and more sustainable alternative to traditional gasoline-powered cars. One of the key components that make EVs possible is the lithium-ion battery. These batteries are not only responsible for powering the vehicle but also play a critical role in determining the safety of the vehicle and its occupants. This paper aims to provide a comprehensive examination of the safety of electric vehicle batteries, covering various facets such as battery chemistry, design, thermal management, charging infrastructure, and safety regulations.
Safety concerns surrounding electric vehicle batteries have been a topic of discussion since the inception of EVs. This concern stems from the fact that lithium-ion batteries, while highly efficient and capable of delivering impressive performance, also have the potential for thermal runaway and fire-related issues.
- Battery Chemistry and Composition

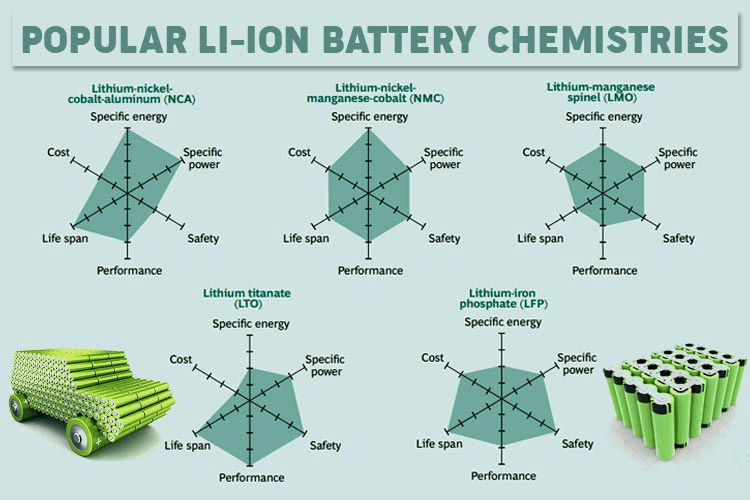

To understand the safety of electric vehicle batteries, it’s essential to delve into the chemistry and composition of these power sources. Most EVs utilize lithium-ion batteries, which consist of several key components:
1.1. Electrodes: Lithium-ion batteries typically have a positive electrode (cathode) and a negative electrode (anode). Common materials used for these electrodes include lithium cobalt oxide (LiCoO2) for the cathode and graphite for the anode.
1.2. Electrolyte: The electrolyte in lithium-ion batteries is typically a lithium salt dissolved in a solvent, often a mixture of ethylene carbonate and diethyl carbonate. The electrolyte conducts lithium ions between the electrodes during charge and discharge cycles.
1.3. Separator: A separator made of a porous material separates the cathode and anode, preventing direct contact between them while allowing lithium ions to pass through.
1.4. Housing: The battery cells are encased in a housing to protect them from physical damage and provide structural support.
1.5. Thermal Management: Some battery designs incorporate thermal management systems, such as cooling and heating elements, to regulate the temperature within the battery pack.
The chemistry of these components, particularly the choice of electrode materials, affects the battery’s performance, energy density, and safety. For example, while lithium cobalt oxide (LiCoO2) has high energy density, it is more prone to thermal runaway and safety issues compared to alternative cathode materials like lithium iron phosphate (LiFePO4), which has a better thermal stability profile.
- Thermal Management
Thermal management is a critical aspect of ensuring the safety of electric vehicle batteries. The operation of lithium-ion batteries generates heat, and excessive heat can lead to various safety concerns, including thermal runaway. Thermal runaway is a phenomenon where a small temperature increase can trigger an uncontrollable exothermic reaction within the battery, potentially leading to fire or explosion.
2.1. Passive Thermal Management: Some electric vehicles use passive thermal management systems that rely on the natural dissipation of heat through the battery’s components. While this approach is simpler and cost-effective, it may not be sufficient for managing the heat generated during high-speed charging or extreme temperature conditions.

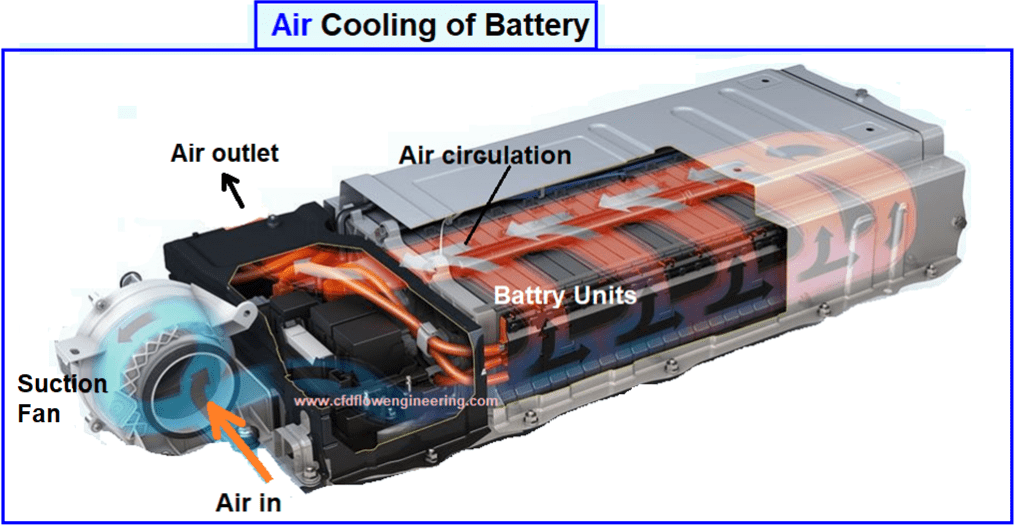

2.2. Active Thermal Management: Many modern EVs employ active thermal management systems that actively control the battery’s temperature. This can involve liquid or air cooling systems that circulate coolant or air through the battery pack to maintain a safe operating temperature range. Active thermal management enhances battery performance and safety.
2.3. Battery Thermal Runaway Mitigation: To prevent thermal runaway, EV manufacturers incorporate various safety mechanisms. These may include thermal sensors, overcurrent protection, and pressure relief valves that can vent gases in case of extreme heat. Additionally, some batteries use materials that are less prone to thermal runaway, reducing the risk.
- Battery Pack Design

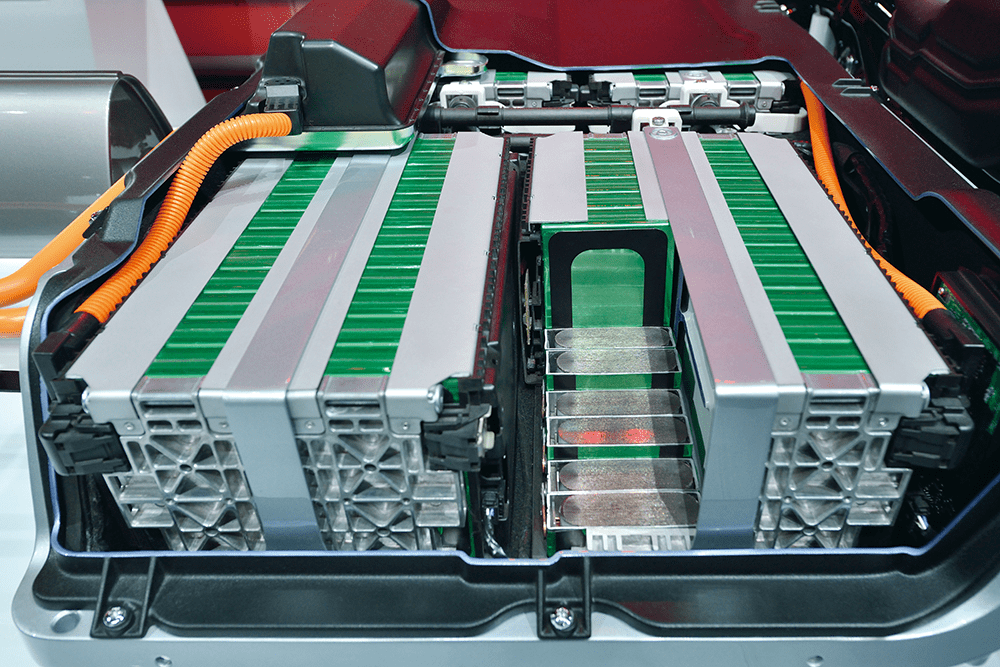

The design of the battery pack itself plays a crucial role in ensuring safety. Battery packs in EVs consist of multiple individual cells connected in series and parallel configurations to achieve the desired voltage and capacity.
3.1. Cell Arrangement: The arrangement of cells within the battery pack is important. A well-designed pack should distribute the load evenly to minimize stress on individual cells and prevent mechanical damage. Additionally, proper spacing and insulation between cells can reduce the risk of short-circuits.
3.2. Containment: Battery packs are typically enclosed in a robust and fire-resistant casing to contain any potential thermal runaway events. The casing should also be designed to prevent external impacts from compromising the integrity of the pack.
3.3. Crash Safety: EV manufacturers conduct extensive crash tests to ensure that the battery pack remains intact and safe in the event of a collision. Crumple zones and reinforced structures are often incorporated to protect the battery from damage.
- Charging Infrastructure
The safety of electric vehicle batteries is not only about the batteries themselves but also about the infrastructure supporting them, particularly the charging stations.
4.1. Charging Standards: The development and adoption of global charging standards, such as CCS (Combined Charging System) and CHAdeMO, have helped ensure compatibility and safety in charging infrastructure. These standards specify communication protocols and safety features, including emergency shut-off mechanisms.
4.2. Overcurrent Protection: Charging stations are equipped with overcurrent protection devices that can detect and respond to anomalies in the charging process. This helps prevent overcharging, which can lead to thermal runaway.
4.3. Cooling Systems: Fast-charging stations often incorporate cooling systems to manage the heat generated during rapid charging. Effective cooling ensures that the battery remains within a safe temperature range during charging.
4.4. User Education: Educating EV users about safe charging practices is essential. This includes avoiding substandard or unverified charging stations, not using damaged charging cables, and understanding the limitations of fast charging.

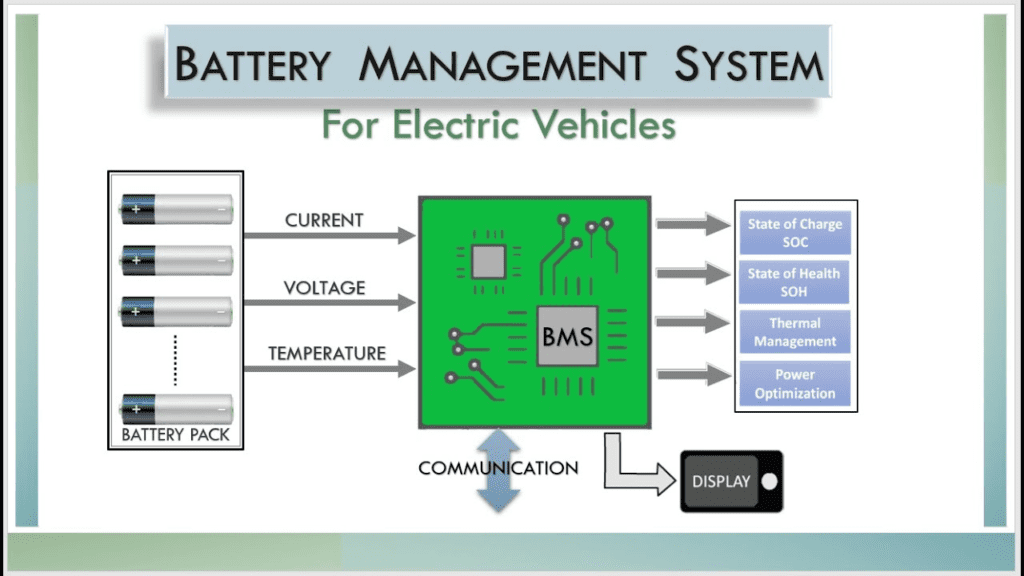

- Battery Management Systems (BMS)
Battery management systems are integral to the safe operation of electric vehicle batteries. These systems monitor and control various aspects of the battery’s performance.
5.1. State of Charge (SoC): BMS continuously monitors the state of charge to prevent overcharging or over-discharging, both of which can compromise battery safety.
5.2. State of Health (SoH): BMS assesses the state of health of individual cells within the battery pack. Cells that exhibit abnormal behavior can be isolated to prevent safety risks.
5.3. Thermal Management: BMS controls the thermal management system, ensuring that the battery stays within a safe temperature range. It may also initiate cooling or heating as needed.
5.4. Fault Detection: BMS detects and responds to faults, such as short-circuits or voltage irregularities, to prevent potential safety hazards.
- Safety Regulations and Standards
Governments and industry organizations have established safety regulations and standards to ensure the safe design, manufacturing, and operation of electric vehicle batteries.
6.1. UN Regulation No. 100: This regulation sets out safety requirements for electric vehicle batteries, including mechanical integrity, electrical safety, and thermal stability. Compliance with UN Regulation No. 100 is a prerequisite for vehicle type approval in many countries.
6.2. ISO 26262: This international standard outlines safety requirements for electrical and electronic systems in vehicles. It includes provisions for hazard analysis, risk assessment, and functional safety measures.
6.3. NHTSA Regulations: In the United States, the National Highway Traffic Safety Administration (NHTSA) oversees safety standards for electric vehicles and their components, including batteries.
6.4. UL Standards: Underwriters Laboratories (UL) provides safety certifications for batteries and charging equipment. UL standards ensure that products meet specific safety criteria.
6.5. Industry Collaboration: Automakers and battery manufacturers often collaborate with industry organizations to develop and promote safety best practices. This includes sharing data on battery performance and safety.
- Common Safety Concerns and Incidents
Despite advancements in battery technology and safety measures, there have been instances of safety concerns and incidents related to electric vehicle batteries. It’s important to examine these incidents to understand their causes and how they can be mitigated.
7.1. High-Speed Charging: Rapid charging at high power levels generates significant heat, which can stress the battery and increase the risk of thermal runaway. Ensuring that both the vehicle and charging infrastructure can handle high-speed charging safely is critical.
7.2. Battery Age and Degradation: As electric vehicle batteries age, their capacity and performance can degrade. Older batteries may be more prone to overheating or other safety issues. Battery management systems must monitor and manage this degradation effectively.
7.3. Manufacturing Defects: Rare instances of manufacturing defects in battery cells or packs can lead to safety concerns. Rigorous quality control and testing are essential to detect and prevent such defects.
7.4. Recall and Response: When safety issues are identified, manufacturers must respond quickly with recalls and corrective actions. Effective communication with vehicle owners is crucial in ensuring safety.
- Future Developments in Battery Safety
The field of electric vehicle battery safety continues to evolve, with ongoing research and development efforts aimed at further improving safety.
8.1. Solid-State Batteries: Solid-state batteries, which replace the liquid electrolyte with a solid electrolyte, have the potential to improve safety by reducing the risk of thermal runaway. Research is ongoing to commercialize these batteries for EVs.
8.2. Advanced Materials: The development of advanced materials for electrodes and electrolytes can enhance battery safety and performance. Silicon anodes, for example, offer higher energy density and improved thermal stability.
8.3. Artificial Intelligence: AI and machine learning are being used to develop predictive models for battery behavior. These models can help identify potential safety issues before they escalate.
8.4. Battery Recycling: Sustainable end-of-life solutions, such as battery recycling and repurposing, are being explored to minimize environmental and safety risks associated with discarded batteries.
Electric vehicle batteries are at the heart of the EV revolution, offering a cleaner and more sustainable mode of transportation. Ensuring their safety is paramount, and significant progress has been made in battery chemistry, thermal management, design, and safety regulations.
While safety incidents are rare, ongoing research and development efforts are essential to further enhance the safety of electric vehicle batteries. Advances in materials, battery management systems, and charging infrastructure will continue to drive improvements in battery safety, making electric vehicles an even safer and more viable transportation option in the future. Ultimately, the safety of electric vehicle batteries is a multifaceted challenge that requires a holistic approach, encompassing technology, regulations, and user education.
