Electric vehicles (EVs) have gained significant popularity in recent years as a more sustainable and environmentally friendly alternative to traditional internal combustion engine vehicles. One of the key components that make EVs possible is the battery. Electric vehicle batteries are the heart of these vehicles, providing the necessary energy to power the electric motor and propel the vehicle forward. In this comprehensive guide, we will delve deep into the world of electric vehicle batteries, exploring their structure, chemistry, charging methods, and the role they play in revolutionizing the automotive industry.
The Evolution of Electric Vehicle Batteries
The concept of electric vehicles dates back to the early 19th century, but it’s only in recent decades that electric vehicle technology has made significant strides. One of the most critical advancements in this field has been the development of high-performance batteries that can store and deliver electricity efficiently.
1.1 Early Battery Technologies
Early electric vehicles relied on relatively primitive battery technologies, such as lead-acid batteries. While these batteries could store and release electricity, they had significant limitations, including low energy density, short lifespan, and a propensity for sulfation, which reduced their performance over time.
1.2 Modern Battery Technologies
Modern electric vehicle batteries are a testament to scientific and technological progress. They are primarily based on lithium-ion (Li-ion) battery technology, which offers several advantages over older technologies. These advantages include higher energy density, longer cycle life, and a more favorable power-to-weight ratio.
Anatomy of an Electric Vehicle Battery
To understand how electric vehicle batteries work, let’s first dissect their structure. Electric vehicle batteries consist of several key components:
2.1 Electrodes
Electric vehicle batteries have two types of electrodes: the cathode and the anode. The cathode is typically made of a lithium-based compound, while the anode is commonly composed of graphite or other carbon-based materials. These electrodes serve as the endpoints for the flow of electric current.
2.2 Electrolyte
An electrolyte is a substance that allows the flow of ions between the cathode and the anode. In Li-ion batteries, the electrolyte is usually a lithium salt dissolved in a solvent, which can be a liquid or a gel-like substance. The electrolyte plays a crucial role in facilitating the movement of lithium ions during charge and discharge cycles.
2.3 Separator
A separator is a permeable membrane that physically separates the cathode and anode while allowing the passage of lithium ions. It prevents direct contact between the electrodes, which could lead to a short circuit. The separator is typically made of a porous polymer material.
2.4 Collector
Collectors are conductive materials that facilitate the flow of electrons generated during the electrochemical reactions between the cathode and the anode. They are typically made of metal, such as aluminum or copper, and are responsible for connecting the battery to the electric motor.

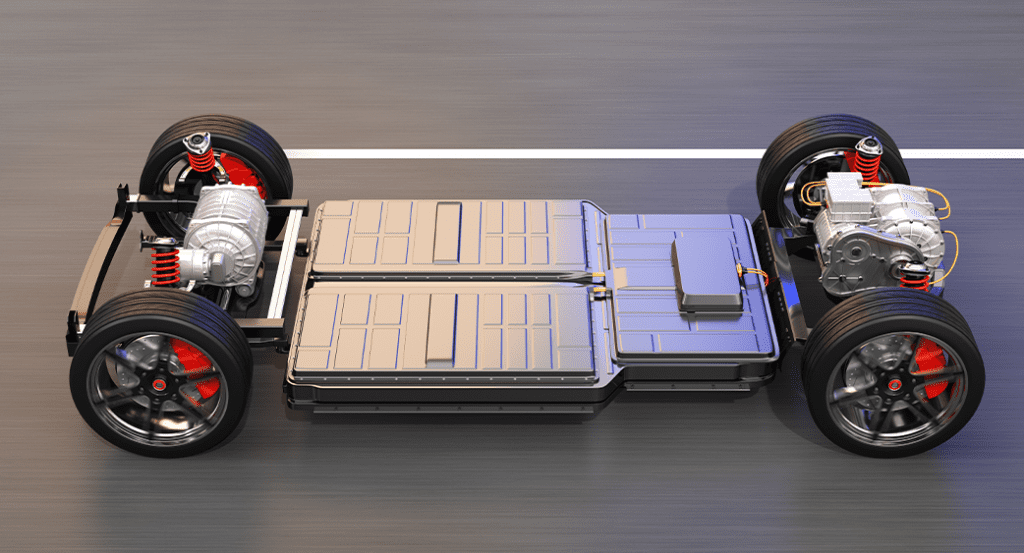

2.5 Housing
The battery’s housing, often referred to as the casing or container, encloses all the internal components and provides structural support and protection. It is designed to withstand various environmental conditions and protect the battery from physical damage.
How Electric Vehicle Batteries Work
Electric vehicle batteries operate on the principles of electrochemistry. When an electric vehicle is in use, the battery undergoes a series of charge and discharge cycles to provide electrical energy to the electric motor. Here’s a step-by-step breakdown of how this process works:
3.1 Charging
During the charging process, electrical energy from an external power source is supplied to the battery. This electrical energy is converted into chemical energy and stored within the battery.
3.1.1 Ion Movement
As the battery charges, lithium ions in the cathode undergo a process called intercalation. In this process, the lithium ions move from the cathode through the electrolyte and into the anode. This movement of lithium ions is facilitated by the external voltage applied during charging.
3.1.2 Electrochemical Reactions
As lithium ions move from the cathode to the anode, electrochemical reactions occur at both electrodes. At the cathode, a lithium-based compound typically undergoes deintercalation, releasing electrons. These electrons flow through the external circuit and can be used to power the electric motor or stored for later use. At the anode, lithium ions are stored in the anode’s structure.
3.2 Discharging
When an electric vehicle is in motion and requires electrical power, the discharging process begins.
3.2.1 Ion Movement
During discharging, the stored lithium ions in the anode start moving back towards the cathode through the electrolyte. This movement of ions generates an electric current that flows through the external circuit, powering the electric motor and driving the vehicle.
3.2.2 Electrochemical Reactions
At the cathode, the lithium ions re-enter the cathode material, causing an electrochemical reaction that combines them with electrons from the external circuit. This process restores the cathode to its original state.
3.3 Repeated Cycles
The charge and discharge cycles can be repeated thousands of times, depending on the battery’s chemistry and design. However, it’s important to note that over time, the battery’s capacity may degrade due to factors such as chemical reactions within the battery, temperature variations, and the number of charge and discharge cycles it undergoes.
Lithium-Ion Battery Chemistry
Lithium-ion batteries are the most common type of battery used in electric vehicles due to their high energy density and efficiency. To understand how they work, let’s delve into their chemistry:
4.1 Cathode Chemistry

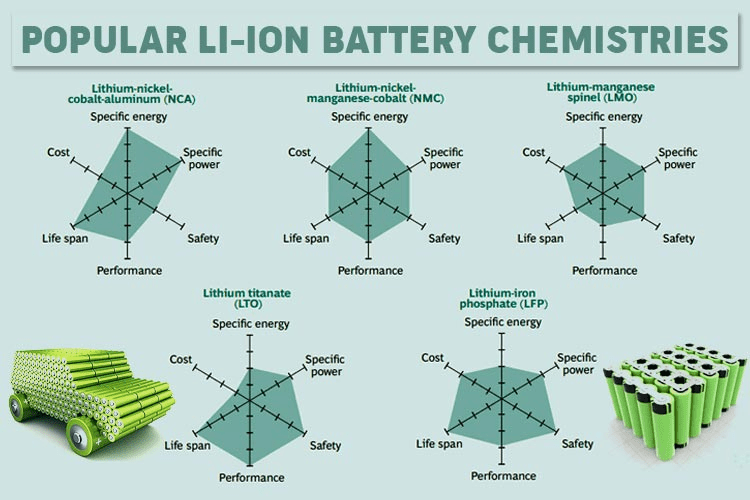

The cathode of a lithium-ion battery typically consists of a lithium metal oxide, such as lithium cobalt oxide (LiCoO2), lithium manganese oxide (LiMn2O4), or lithium iron phosphate (LiFePO4). Each of these materials has its own advantages and disadvantages in terms of energy density, safety, and cost.
4.2 Anode Chemistry
The anode of a lithium-ion battery is typically composed of graphite or other forms of carbon. During charging, lithium ions are stored in the carbon structure of the anode, and during discharging, they are released.
4.3 Electrolyte Chemistry

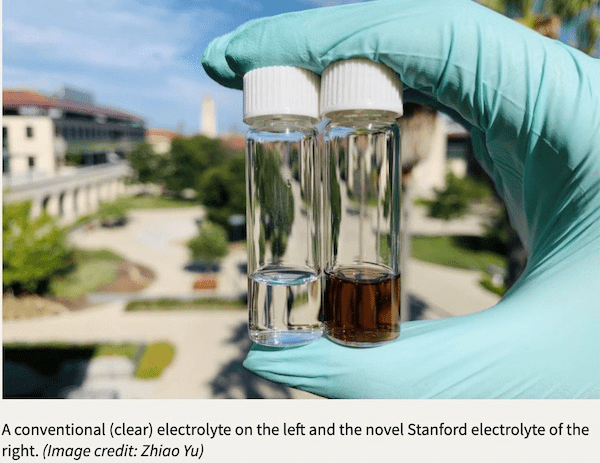

The electrolyte in a lithium-ion battery is a lithium salt dissolved in a solvent. Common lithium salts include lithium hexafluorophosphate (LiPF6) and lithium bis(trifluoromethanesulfonyl)imide (LiTFSI). The choice of electrolyte and solvent affects the battery’s performance and safety.
4.4 Safety Measures
Lithium-ion batteries are sensitive to high temperatures and overcharging. To prevent thermal runaway and other safety issues, modern lithium-ion batteries are equipped with various safety mechanisms, including thermal management systems, battery management systems (BMS), and protective circuits.
Charging Electric Vehicle Batteries
Charging an electric vehicle’s battery is a critical aspect of EV ownership. There are several methods and charging levels available to accommodate different needs and scenarios:
5.1 Level 1 Charging (120V)
Level 1 charging is the slowest and simplest method of charging an EV. It involves using a standard household 120-volt electrical outlet. While convenient, Level 1 charging is relatively slow and may take several hours or even overnight to fully charge an EV.
5.2 Level 2 Charging (240V)
Level 2 charging is significantly faster than Level 1 charging. It requires a dedicated 240-volt charging station, which is commonly installed in homes, workplaces, and public charging stations. Level 2 charging can provide a full charge in a matter of hours, making it more practical for daily use.
5.3 DC Fast Charging
DC fast charging, also known as Level 3 charging, is the quickest method for charging an EV. These chargers are typically found at public charging stations and can provide a significant charge in a matter of minutes. They are ideal for long-distance travel and quick top-ups.
5.4 Wireless Charging

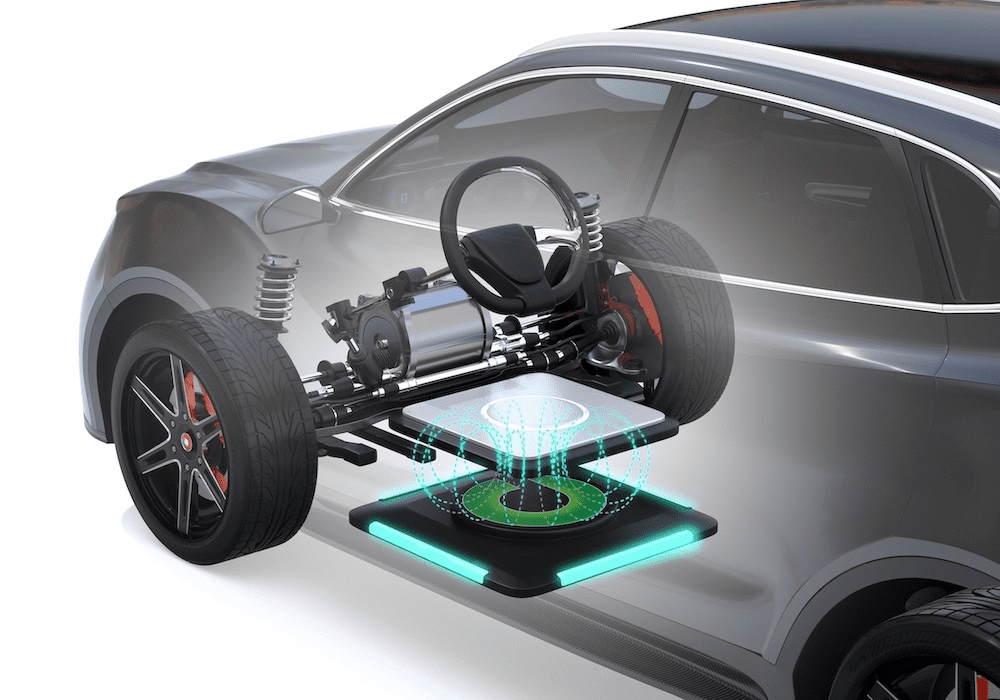

Wireless charging is an emerging technology that eliminates the need for physical cables and connectors. It involves using electromagnetic fields to transfer energy from a charging pad to the EV’s onboard charger. While convenient, wireless charging is currently less efficient than wired charging.
Electric vehicle batteries are at the forefront of the transportation revolution. They enable vehicles to run on electricity, reducing greenhouse gas emissions and dependence on fossil fuels. Understanding the science and technology behind electric vehicle batteries is crucial for consumers, researchers, and policymakers as we strive to build a more sustainable and electrified future for transportation. As technology continues to advance, electric vehicle batteries will play an even more significant role in shaping the future of mobility.
