More compact, resource-efficient, and precise analytical instruments (space technology) are needed more and more urgently as space missions explore the outer solar system, particularly given the ongoing search for alien life and habitable planets and moons.
This space technology novel sensor was created by a team under the direction of the University of Maryland, especially for NASA space missions. The quality of their little laser-sourced analyzer’s capacity to examine planetary material samples and possible life activity on the spot has not been compromised, and it is substantially smaller and more resource-efficient than its predecessors. On January 16, 2023, the team’s publication on this novel apparatus appeared in the journal Nature Astronomy.

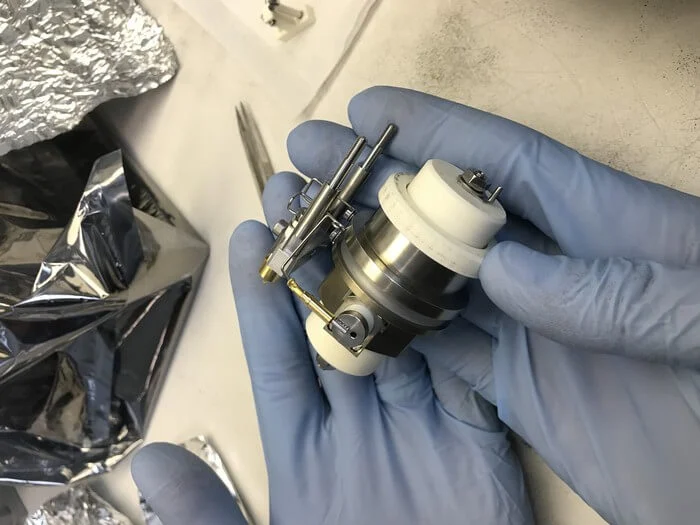

The space technology instrument, which only weighs about 17 pounds, is a physically scaled-down combination of two crucial tools for identifying the composition of materials and looking for signs of life: a pulsed ultraviolet laser that removes minute amounts of material from planetary samples and an Orbitrap analyzer that provides high-resolution data about the chemistry of the materials being looked at.
Lead author of the study and associate professor of geology at the University of Maryland, Ricardo Arevalo, said that the Orbitrap was initially intended for commercial application. “They may be found in the laboratories of the pharmaceutical, medical, and proteomic sectors. They are fairly large—the one in my lab weighs just under 400 pounds—and it took us eight years to create a prototype that could be utilised effectively in space while being substantially smaller and less resource-intensive.”
The team’s new device reduces the size of the original Orbitrap while combining it with LDMS—techniques that have not previously been used in an alien planetary setting. According to Arevalo, the new gadget has the same advantages as its bigger forebears but is more compact for planetary material investigation on-site.
The compact Orbitrap LDMS sensor may be carried on space mission payloads with ease because of its small mass and low power needs. A sample is significantly less likely to be contaminated or damaged by the instrument’s studies of a planetary surface or material than by many existing techniques used to try to detect unidentified chemicals.
“A laser source has the advantage of enabling analysis of anything that can be ionised. We should be able to describe the composition of the ice and detect biosignatures in it if we point our laser beam at an ice sample “Added Arevalo. Any molecular or chemical structures in a sample become significantly more recognisable because to this tool’s great mass resolution and precision.
Researchers may also access bigger, more complex molecules that are more likely to be linked to biology thanks to the laser component of the small LDMS Orbitrap. Amino acids, for instance, are a good example of a smaller, less clear indicator of life.
“Amino acids are not always a sign of life since they might be created abiotically. Abiotic organics may be delivered to the surface of a planet by meteorites, many of which are packed with amino acids, “Added Arevalo. “We now understand that bigger and more intricate molecules, such as proteins, are more likely to have originated from or be related to biological systems. We can analyse bigger, more complicated organic molecules with the laser, which can reflect biosignatures with more fidelity than smaller, easier chemicals.”
The tiny LDMS Orbitrap will provide Arevalo and his colleagues with much-needed knowledge and flexibility for future trips into the outer solar system, such as missions with life detection goals (like Enceladus Orbilander) and lunar surface investigation (e.g., the NASA Artemis Program). Within the next several years, they want to launch their gadget into orbit and set it up on an interesting planetary target.
Arevalo said, “I see this prototype as a trailblazer for various future LDMS and Orbitrap-based sensors.” The method we now research the geochemistry or astrobiology of a planetary surface may be considerably improved by our tiny Orbitrap LDMS device.
